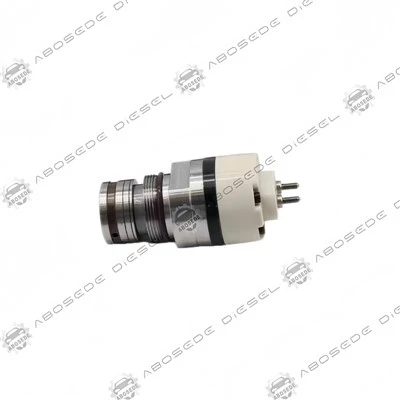

CAT C15 Solenoid Valve los ua ke - Siab-Speed ​​Actuator Rau HEUI Injector Spill Control|24V PWM-Optimized



Hauv Caterpillar C15 HEUI (Hydraulically actuated Electronically controlled Unit Injector) roj system, lub solenoid valve sib dhos ua haujlwm raws li tus choj tseem ceeb ntawm ECM cov lus txib thiab hydraulic actuation. Tsis zoo li yooj yim rau / tawm solenoids, cov khoom siv no ua haujlwm ua ib qhoproportional quab yuam actuator, qhov sib txawv ntawm PWM lub luag haujlwm lub voj voog hloov pauv lub zog sib nqus siv rau kev tswj valve spool. Qhov kev ua piv txwv no tso cai rau ECM los ua qhov tseeb ntawm qhov kev txhaj tshuaj - tswj tsis yog thaum txhaj tshuaj pib, tab sis cov roj xa tawm sai npaum li cas. Lub solenoid uas tau poob nws qhov kev ua tau zoo sib nqus (vim coil degradation lossis armature hnav) qhia txog qhov tsis yog - cov lus teb: ntawm lub voj voog qis, lub spool yuav tsis nqa tag nrho, ua rau kev tsav roj los ntshav tsis zoo uas tshwm sim tsis ruaj khov thiab muaj pa taws ntau ntxiv.

Peb cov khoom yog ib tug ncaj hloov solenoid sib dhos engineered rau lub C15 HEUI injector platform, validated tiv thaiv tus thawj lub hnab ntawv rau ib feem naj npawb 236-6462, 10R-0696, thiab 185-8970. Lub rooj sib txoos nta adual{0}}coil configuration(rub-nyob rau hauv thiab tuav windings) mob nrog siab - kub enameled tooj liab hlau thiab encapsulated nyob rau hauv ib lub iav - puv nylon bobbin, xa ib yam sib nqus quab yuam nyob rau hauv lub engine tag nrho cov kev khiav hauj lwm kub ntau yam.



Qhov kev sib dhos solenoid no yog qhov sib luag thiab hluav taws xob sib txuam rau cov lej hauv qab no feem ntau ntsia hauv C15 thiab C16 xyaw (serial prefixes 6NZ, 7CZ, 8PN, 9CK, 1MM, 2KS, 5KZ, 3CS):

Injector Part Number	Solenoid Service Reference	Daim ntawv thov / Calibration Note
191-3003	10R-8501 / 10R-0956	Txheem C15 ACERT (pre-DPF)
211-3022 / 211-3023	10R-8501 / 10R-8500	Siab -flow variants (marine/industrial)
211-3024 / 211-3025	10R-0955 / 10R-0956	Late- qauv 6NZ nrog ADEM IV
200-1117	10R-0957 / 10R-0958	Remanufactured EUI core
235-1400 / 235-1401	10R-3263 / 10R-3264	High-altitude calibration (> 3,000m)
253-0614 / 253-0615 / 253-0617	289-0753 / 10R-9236	Tier 3 emissions ua raws
272-0630 / 280-0574	20R-8047 / 20R-2284	C15 nrog integrated roj temp sensor
239-4909 / 244-7716	10R-1000 / 10R-7229	Ntawm - txoj kev loj hlob roj kev lag luam
249-0709 / 254-4183	10R-8989 / 10R-3263	Kev lag luam gen-set ( tas li 1800 RPM)
355-6110 / 374-0750 / 618-0750	10R-8500 / 10R-8502	C16 derivative (tseem solenoid haum)

Hluav taws xob Compatibility Note:Thaum lub solenoid mounting hneev taw yog zoo ib yam nyob rau hauv cov injector feem tooj, lubhluav taws xob connector orientationsib txawv-90℃angled piv rau ncaj tawm. Peb lub rooj sib txoos nta arotatable connector(360℃adjustable) uas yoog rau ob qho tib si kev teeb tsa, tshem tawm qhov xav tau ntawm cov khoom siv cables.



Rau C15 HEUI system, lub solenoid qhov kev ntsuas kev ua haujlwm tseem ceeb yog nwsmagnetic rub quab yuamhla qhov sib txawv ntawm huab cua thaum lub armature nqa. Cov ntaub ntawv hauv qab no yog muab los ntawm kev ntsuas lub rooj zaum ntawm 24V mov nrog 8A ncov / 3.2A tuav tam sim no:

Parameter	Specification (Tshiab)	Degradation Threshold
Pull Force (ntawm 0.35mm huab cua sib txawv)	42 N ±3%	< 38 N (slow response)
Tuav Force (ntawm 0.45mm stroke)	18 N (yam tsawg kawg nkaus)	< 15 N (valve bounce risk)
Lub sijhawm hluav taws xob tsis tu ncua (L / R)	4.1 ms @ 20 degree	>5.0ms (coil degradation)
Dynamic Open Delay (rau 90% tam sim no)	1.50ms (PWM 70%)	>1.80 ms (lub sij hawm retardation)
Dynamic Close Delay (tam sim no lwj)	1.80 ms (nrog flyback clamp)	>2.20 ms (kev pheej hmoo sib tshooj)
Coil Resistance (thawj @ 20 degree)	0.95 Ω ±0.05Ω	>1.05Ω (sab hauv corrosion)

Graphical Abstraction – Qhov "Pull-In vs. Hold" Hloov:
Pom cov qauv nthwv dej tam sim no thaum ib qho kev txhaj tshuaj ib zaug: qhov siab -tam sim no "rub-" theem (8A rau 0.6ms) kom kov yeej inertia thiab caij nplooj ntoos hlav preload, ua raws li "tuav" tam sim no (3.2A) kom lub spool lifted. Qhov kev hloov pauv tseem ceeb heev-yog tias rub- nyob rau hauv tam sim no decays qeeb heev, lub injector tseem qhib ntev dua li hais; Yog hais tias nws lwj sai heev, lub spool yuav "sib tham" ua ntej zaum tag nrho. Peb cov solenoid tau sib phim rau C15 ECM qhov profile tam sim no, ua kom muaj kev hloov pauv tsis sib haum ntawm cov theem thiab lub sijhawm txhaj tshuaj zoo ib yam.



Lub C15 nyob rau hauv -hood ib puag ncig-tshwj xeeb tshaj yog nyob rau hauv hnyav- tsheb thauj khoom siv- cuam tshuam cov solenoid mus rau qhov kub thiab txias ntawm 115℃nrog spikes mus rau 140℃thaum lub sij hawm rov tsim dua. Peb cov solenoid suav nrog:

Class H rwb thaiv tsev:Polyimide (Kapton ™{0}}hom) daim kab xev rwb thaiv tsev ntawm cov hlau nplaum hlau, ntsuas rau kev ua haujlwm tsis tu ncua ntawm 180℃nrog 200℃luv-lub sijhawm tiv taus.

Thaum tshav kub kub-Dab dej Epoxy Potting:Ib qho thermally conductive epoxy (1.8 W / m·K) sau cov kab noj hniav, hloov cov cua sov los ntawm cov cua ntsawj ntshab mus rau lub tsev hlau. Qhov no txo ​​qis cua kub los ntawm kwv yees li 12℃piv rau huab cua- cov qauv tsim.

Ferrite Core Lamination:Cov tub ntxhais sib nqus siv 4% silicon steel laminations (0.35mm tuab) kom txo qis tam sim no poob los ntawm 18%, txhim kho kev sib nqus thiab txo cov cua sov coil.

Visual Innovation - Connector Xim Coding:
Lub cev connector yog molded nyob rau hauvgrey(tus qauv) rau thawj rub- hauv winding thiabdubrau kev tuav winding- sib phim cov xim sib cog lus siv rau Caterpillar's ADEM III thiab ADEM IV cav hlua, ua kom yooj yim txheeb xyuas thaum teeb tsa.



Kauj Ruam 1 - Kev Ntsuas Hluav Taws Xob:Ua ntej kev teeb tsa, ntsuas qhov tseem ceeb ntawm coil tsis kam (pins A-B) thiab theem nrab coil tsis kam (pins B-C) ntawm chav tsev kub. Txais tau: 0.90–1.00Ω (thawj) thiab 1.75–1.95Ω (secondary).

Kauj Ruam 2 – Mechanical Installation:Tso lub solenoid hla lub injector tswj valve spool, aligning tus pin nrhiav. Torque cov tuav tuav rau2.5 N·mhauv tus ntoo khaub lig- qauv (M6 kho vajtse).

Kauj ruam 3 - Qhov "Buzz Test":Siv Cat ET (Electronic Technician) los ua qhov kev xeem injector solenoid buzz. Lub solenoid noj qab haus huv ua rau qhov sib txawv, ntse "nias-nias" ntawm 10 Hz. Ib qho npub lossis ploj lawm qhia tias tsis muaj zog sib nqus - rov kuaj xyuas qhov txuas thiab hauv av.

Kauj Ruam 4 – Adaptive Learn Reset:Tom qab kev teeb tsa, ua "Injector Solenoid Kawm" niaj hnub hauv Cat ET kom rov pib dua ECM qhov kev kawm offset qhov tseem ceeb rau cov tshiab solenoid cov lus teb tshwj xeeb.



Q1: Kuv C15 muaj qhov yuam kev "359" (Kev Txhaj Tshuaj Tiv Thaiv Lub Sijhawm Tsis Txaus). Tus neeg muag khoom hais tias nws yog ECM, tab sis lub solenoid puas yog qhov ua rau?
Yog-qhov txhaum 359 tshwj xeeb qhia tau hais tias ECM tau kuaj pom lub sijhawm teb solenoid sab nraum nws lub qhov rais txais tau (feem ntau> 1.8ms qhib ncua). Qhov no yuav luag txhua qhov teeb meem solenoid, tsis yog ECM qhov teeb meem. Lub solenoid's magnetic force degrades dhau sijhawm, ua rau qhov qhib ncua sijhawm. Hloov cov solenoid feem ntau daws qhov txhaum yam tsis muaj ECM hloov.

Q2: Kuv yuav ua li cas paub qhov txawv ntawm qhov ua tsis tau zoo solenoid thiab lub cev tsis ua haujlwm?
Ua qhov "cylinder cutout test" ntawm 1,400 RPM. Yog hais tias lub tog raj kheej tus nqi pab txhim kho tau zoo (los ntawm> 3%) thaum koj hloov lub solenoid yam tsis tau hloov lub injector, lub solenoid yog qhov teeb meem. Yog tias qhov nyiaj pab qis qis (< 90%), the injector body (plunger/barrel) is likely worn.

Q3: Peb C15 ua haujlwm ntawm qhov siab siab (3,500m). Lub solenoid puas yuav tsum tau derated?
Tsis yog -solenoid qhov kev ua haujlwm sib nqus yog ywj siab ntawm atmospheric siab. Txawm li cas los xij, ECM yuav them rau qhov siab los ntawm kev kho lub sijhawm txhaj tshuaj, uas txhais tau hais tias lub solenoid yuav pom lub luag haujlwm ntev dua. Peb chav H rwb thaiv tsev ua kom cov kauj tuaj yeem ua haujlwm ntev ntev - lub sijhawm tam sim no yam tsis muaj cua sov.

Q4: Cov solenoid no puas tuaj yeem siv rau ntawm C15 nrog kev hloov dual - roj (diesel / LNG)?
Yog lawm -dual- kev hloov pauv roj tsis hloov lub solenoid cov hluav taws xob lossis cov khoom siv hluav taws xob. Txawm li cas los xij, tus tsav diesel kom muaj nuj nqis nyob rau hauv dual - kev siv roj tsawg dua, yog li cov solenoid ua haujlwm ntawm qis tuav tam sim no. Qhov no yog nyob rau hauv lub solenoid's linear kev khiav hauj lwm ntau yam thiab tsis cuam tshuam rau lifespan.

Q5: Lub neej ntev npaum li cas ntawm lub solenoid no nyob rau hauv daim ntawv thov tsheb thauj mus los (ntau zaus pib- nres)?
Raws li kev soj ntsuam ceev ceev, lub solenoid cov lus qhia armature feem ntau hnav tom qab2.2 lab lub voj voog-kwv yees li 400,000–450,000 mais nres-thiab- mus rau kev tsheb. Tshaj li qhov no, qhov sib txawv ntawm huab cua nthuav dav los ntawm 0.08mm, nce qhib ncua mus rau qhov chaw uas qhov "359" txhaum yuav tshwm sim. Peb pom zoo kom muaj kev hloov pauv ntawm 350,000 mais.

Q6: Kuv pom "10R-8500" thiab "10R-8501" teev rau kuv cov tshuaj txhaj. Qhov twg yog koj cov khoom hloov?
Peb cov solenoid tau muab los ua lub rooj sib txoos thoob ntiaj teb uas ua haujlwm hloov ob qho tib si. Qhov txawv ntawm 10R-8500 thiab 10R-8501 feem ntau yog lub kaum sab xis txuas (ncaj vs . 90℃). Peb rotatable connector adapts rau ob leeg-tsuas yog tig lub connector mus rau qhov xav orientation ua ntej xauv nws nyob rau hauv qhov chaw.
