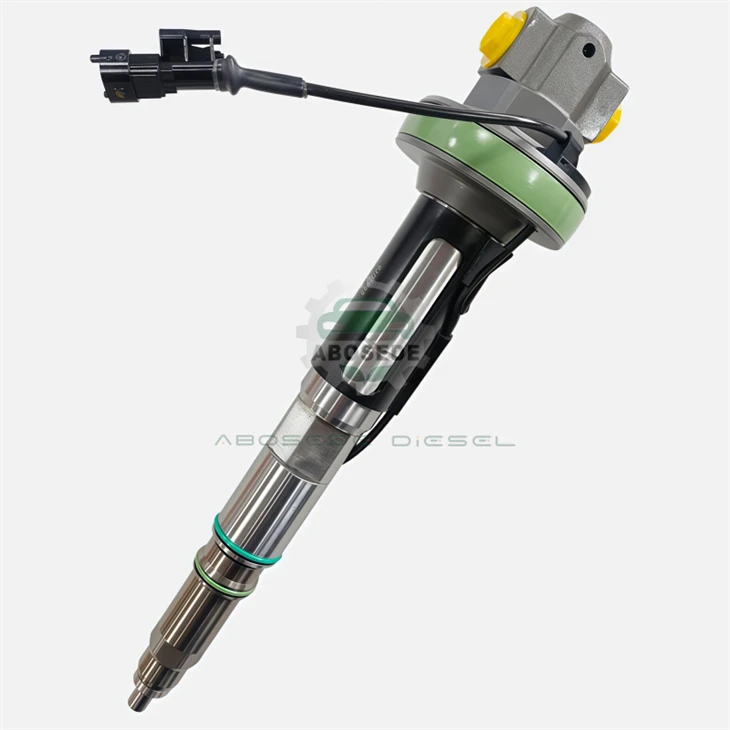

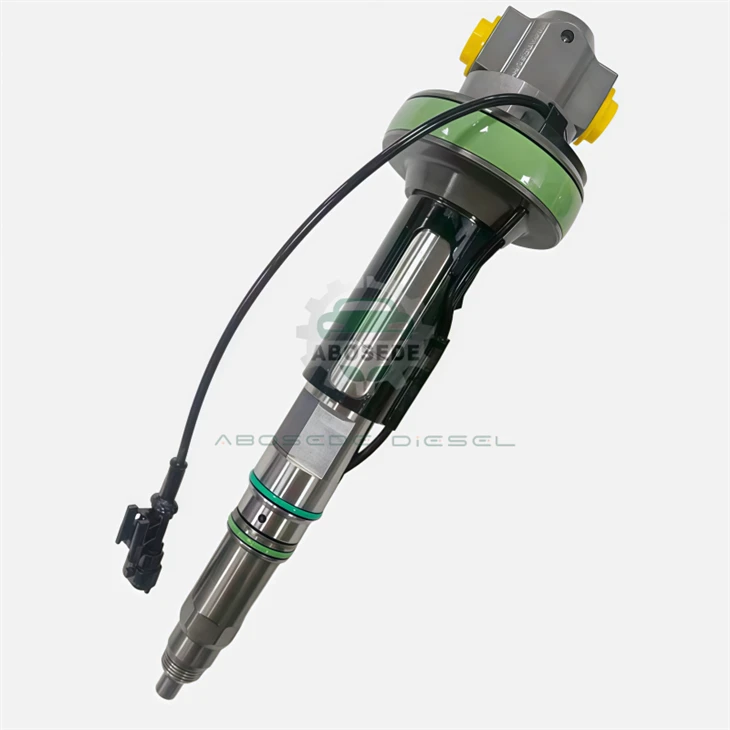

F 00B L0J 018 Roj Injector Rau Cummins QSK19/38/50/60|Tier 2 Siab -Txoj kev daws teeb meem MCRS

Nyob rau hauv lub cheeb tsam ntawm ultra- siab- cov tshuab xa tawm, kev hloov pauv ntawm cov tshuab hluav taws xob mus rau hluav taws xob xa hluav taws xob tau txhais los ntawmModular Common Rail System (MCRS). Raws li ib tug laus diesel systems engineer, kuv twb pom tias thaum lub lag luam feem ntau obsesses tshaj peak horsepower, qhov tseeb yeej nyob rau hauv.txhaj tshuaj stability. CovF 00B L0J 018injector yog tus neeg saib xyuas ntsiag to ntawm qhov kev ruaj ntseg rau Cummins QSK-series cav (19L txog 60L). Tsis zoo li cov txheej txheem injectors uas tsuas yog "pob tseg" roj, chav tsev no yog qhov tseeb hydraulic valve muaj peev xwm tswj hwm micro- thib ob raug nyob rau hauv kev sib tsoo ntawm kev lag luam mining thiab marine ib puag ncig.



🏗️ Daim Ntawv Thov Scope: Lub Caj Npab Ntawm Lub Zog Muaj Zog



CovF 00B L0J 018yog engineered tshwj xeeb rau Cummins cav ua hauj lwm nyob rau hauvQib 2 / Theem IIemission raws tu qauv. Nws architecture yog ib qho tseem ceeb nyob rau hauv siab - cov khoom siv thauj khoom qhov twg torque sib xws tsis yog -negotiable.

Mining Fleets:Qhov tseem ceeb rauKomatsu 830E/930EthiabTom ntej: Hitachi EX3600excavators, qhov twg cyclic loading xav tau ceev roj them nyiaj.

Marine Power:Optimized rau kev lag luam nkoj nuv ntses thiab cov nkoj uas siv QSK38 thiab QSK50 propulsion, kom ntseeg tau roj efficiency thaum lub sij hawm ntev - tsheb thauj mus los.

Data Center Backup:Kev koom ua ke rau hauv QSK60 lub tshuab hluav taws xob teeb tsa los muab qhov ze ntawm - thauj khoom sai sai - nqa lub peev xwm xav tau rau lub zog hluav taws xob thaum muaj xwm txheej ceev.

Hla -Reference Integrity:Ncaj nraim hloov thiab sib pauv nrog0 986 435 611thiab Cummins4964171 / 4955525.





CovF 00B L0J 018yog txhais los ntawm nws lub peev xwm los decouple siab tiam los ntawm lub cav ceev -ib qho cim ntawm Bosch - tsim MCRS logic.

Specification Parameter	Tus nqi nthuav dav
Khoom ID	F 00B L0J 018
Txhaj Architecture	Modular Common Rail System (MCRS)
Kev Ua Haujlwm Siab	Optimized rau1400-1800 hli
Siv tau roj	Ultra-Low Sulfur Diesel (ULSD) / B20 Biodiesel
Cav Series	Cummins QSK19, QSK38, QSK50, QSK60
Nozzle Technology	Hydro-eroded Orifices (Nanoscale precision)
Emissions Txheem	EPA Tier 2 / IMO Theem II





Vim li cas "Modular"? Hauv Cummins QSK ecosystem, lubF 00B L0J 018tsis tau txais roj xwb; nws ua raws li lub zos accumulator.

Siab Wave Dampening:Qhov tshwj xeeb ntim sab hauv ntawm MCRS injector lub cev minimizes hydraulic "suab nrov" hauv kev tsheb ciav hlau. Qhov no tiv thaiv lub siab spikes uas feem ntau ua rau tawg kab hauv siab -horsepower V16 engines.

Solenoid teb:Lub electromagnetic actuator yog tsim los rau siab - zaus hloov, tso cai rauKev Txhaj Tshuaj ntau yam(Pilot, Main, thiab Post) nyob rau hauv ib qho combustion stroke, uas txo qis NOx thiab suab nrov.

DLC txheej kev koom ua ke:Txhawm rau tiv thaiv qhov tsis muaj lubricity nyob rau hauv cov roj niaj hnub, qhov tseem ceeb zawv zawg qhov chaw nyob rau hauv lub injector featurePob zeb diamond-zoo li Carbon (DLC)coatings los tiv thaiv "sticking" thiab koob ntxov ntxov hnav.





Xaiv qhovF 00B L0J 018yuav tsum muaj kev nkag siab txog lub cav qhov tshwj xeeb tsim daim ntawv.

The Tier 2 vs. Tier 3 Pivot:Thaum lub cev zoo ib yam li Tier 3 variants (zoo li 612 series), lubF 00B L0J 018muaj qhov tshwj xeeb nozzle ntws tus nqi ntsuas rau Tier 2 ECM daim ntawv qhia. Txhim kho qhov tsis ncaj ncees lawm "Tier" version yuav ua rau lub siab tso pa kub (EGT) thiab muaj peev xwm piston melting.

Configuration Matching:Xyuas kom lub injector phim lub cavCPL (Control Parts List). Rau QSK60 lub cav, nws yog ib qho tseem ceeb uas yuav tsum tau siv tib seem tus lej hla tag nrho 16 lub tog raj kheej kom tswj tau qhov sib npaug ntawm crankshaft.

Kev ruaj ntseg foob:Ib txwm txheeb xyuas qhov suav nrog cov tshwj xeeb O-rings thiab crushers. MCRS qhov kev xa rov qab siab tshaj - ntws siab tuaj yeem yooj yim tshuab tawm qis dua, tsis yog -OEM seals.





Q1: Puas yog F 00B L0J 018 sib hloov nrog F 00B L0J 017?

A:Yog lawm, cov no feem ntau yog ib feem ntawm tib txoj kev sib txuas ua ke. Cov018feem ntau sawv cev rau kev tsim kho tshiab nrog kev txhim kho sab hauv pom lossis solenoid coil rwb thaiv tsev.

Q2: Kuv QSK19 tab tom ntsib "Ntiaj Teb" ntawm idle. Nws puas tuaj yeem yog cov tshuaj txhaj tshuaj?

A:Tejzaum. Nyob rau hauv MCRS systems, yog hais tias lub internal pob valve ntawm lubF 00B L0J 018yog me ntsis hnav, qhov rov qab ntws los ua tsis zoo, yuam ECM kom hloov kho cov Roj Pump Actuator (MPROP), ua rau muaj qhov tsis ruaj khov.

Q3: Puas yog qhov kev txhaj tshuaj no xav tau "Coding" rau hauv Cummins ECM?

A:Yog lawm. TxhuaF 00B L0J 018los nrog tus lej cim calibration (IMA/ISA). Nkag mus rau qhov no rau hauv ECM ntawmCummins Insitexyuas kom lub cav them nyiaj rau cov feeb tsim kev sib txawv hauv kev xa roj.

Q4: Kuv yuav txheeb xyuas qhov tseeb ntawm Bosch / Cummins F 00B L0J 018 li cas?

A:Saib rau lub laser -etched matrix code thiab "Made in Germany/Austria" stamps. Cov khoom cuav feem ntau muaj qhov qis qis thiab tsis muaj cua sov tshwj xeeb -kev kho "bluing" ntawm lub taub hau.

Q5: Kuv puas tuaj yeem khiav siab - cov roj sulfur nrog cov tshuaj no?

A:Thaum lub injector yog lub cev muaj zog, siab sulfur tsub kom acidic combustion byproducts. Yog tias siv, koj yuav tsum ua kom koj cov roj ntws tawm luv luv thiab siv lub siab -TBN (Tag Nrho Tus Naj Npawb) roj los tiv thaiv kev yaig ntawm cov tshuaj txhaj tshuaj.
