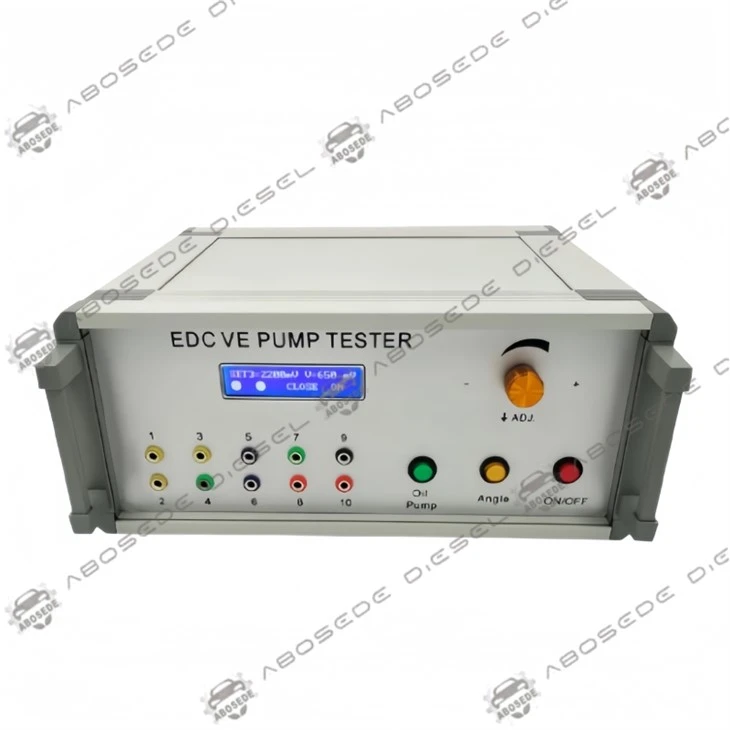

EDC VP37 Pump Tester - Professional Diesel Txhaj Tshuaj Diagnostic Simulator

EDC VP37 Pump Tester - Professional Diesel Txhaj Tshuaj Diagnostic Simulator

1. Khoom: EDC VP37 Pump Tester
2. Cov khoom siv sib xws: Diesel Fuel Injection Systems
3. Chaw tsim tshuaj paus: Aftermarket OEM Hloov
4. Cov xwm txheej: Brand tshiab, kuaj tag nrho
5. Keeb kwm: ABOSEDE Diesel
6. Lub sij hawm xa khoom: 3-5 hnub ua haujlwm
7. Cov nqe lus them nqi: T / T, Western Union, PayPal

Ceev ceev
Kev Muaj Peev Xwm Zoo
24\/7 Cov Neeg Siv Khoom

Khoom Taw qhia

CovEDC VP37 Pump Testeryog ib qho kev kuaj mob tshwj xeeb simulator rau cov kws tshaj lij diesel roj txhaj tshuaj rhiav, ua kom muaj kev ua haujlwm tau zoo ntawmBOSCH VP37, HWV 37, Terraca, thiab lwm yamBOSCH VE series distributor twj tso kua mis. Lub rooj zaum ntawm lub rooj zaum no rov ua dua ECU tswj cov cim qhia kom ua kom muaj qhov sib npaug sib npaug- cov khoom siv hlau nplaum, saib xyuas cov lus pom zoo, thiab tshawb xyuas lub sijhawm txhaj tshuaj yam tsis tas yuav tsum muaj lub cav sib xyaw ua ke. Ua rauDiesel FIP xeem lub rooj ntev zaumib puag ncig, nws txuas cov tshuab twj tso kua mis overhaul thiab hluav taws xob system validation, kom txhua txhua rebuilt twj tso kua mis raws li OEM kev ua tau zoo benchmarks. Los ntawm kev sib koom ua ke cov kev ntsuam xyuas zoo li qub nrog cov qauv tswj kev tswj hwm, nws txhawb cov khw muag khoom kom kuaj xyuas cov teeb meem ntawm cov actuator faults, sensor drift, thiab cov lus teb solenoid qeeb uas ua rau muaj kev tsis txaus siab los yog ua tsis tiav emissions, txo kev rov qab los thiab txhim kho kev cob qhia.

🔧 Technical Specifications & Harsh Ib puag ncig kev ua tau zoo

Kev ua haujlwm ncaj ncees ntawm lubEDC VP37 Pump Testerthauj tog rau nkoj hauv nws cov khoom siv hluav taws xob muaj zog, cuam tshuam nrog cov kev teeb tsa tshwj xeeb ntawm BOSCH cov twj tso kua mis. Unit muab ibtsav tam sim nontawm 4-5A thiab atsav voltagespanning 0-5V, nrog rau PWM zaus ntau ntawm 165-195HZ kom raug tswj cov proportional rotary-magnet actuator. Rau kev siv tau zoo li qub, cov kws tshaj lij siv lub tshuab ntsuas hluav taws xob los ntawm kev siv lub ntsuas hluav taws xob los ntsuas qhov kev tiv thaiv tseem ceeb: tus tsav actuator nyeem 5-6Ω, txoj hauj lwm sensor coil ranges 0.4-1.5kΩ, thiab qhov ntsuas kub ntawm 1-2kΩ ntawm 22.5 degree. Qhov tseem ceeb, lub kaw lus saib xyuas cov lus tawm tswv yim los ntawm lub kaum sab xis sensor los tso saib lub tes tsho metering txoj hauj lwm, thiab nyeem cov thermistor teeb liab los them rau cov roj viscosity hloov. Chav tsev ua haujlwm muaj kev ntseeg siab nyob rau hauv qhov kub thiab txias ntawm -5℃txog 50 degree, kev sib koom ua ke yooj yim nrog cov teeb tsa kev sim uas twb muaj lawm los ntawm tus qauv USB lossis 12/24V DC fais fab cuam tshuam rau ob qho tib si mobile vans thiab chaw nres tsheb.

🛣️ Comprehensive Vehicle and Pump Application Coverage

Tsim los rau versatility, lubEDC VP37 Pump Testermuab tag nrho cov kev pab cuam thoob plaws lub teeb-lub luag hauj lwm thiab nruab nrab- lub luag hauj lwm diesel cav siv hluav taws xob tswj kev faib khoom- hom roj tshuab. Tshaj qhov kev txhawb nqa tseem ceeb rauBOSCH VP37thiabHWV 37twj tso kua mis, qhov tester no validated rauTerracacov twj tso kua mis thiab lwm yam BOSCH VE variants suav nrog VP30, ua rau nws tseem ceeb rau kev cob qhia kev pabcuam European, Neeg Esxias, thiab Asmeskas cov tsheb thauj khoom, tsheb, thiab cov neeg caij tsheb txij li xyoo 1990 mus txog nruab nrab -2000s. Cov ntawv thov xws li Volkswagen TDI (1.9L thiab 2.5L), Audi, Škoda, Rooj qauv nrog EDC 15 thiab EDC 16 kev tswj hwm, nrog rau Mercedes-Benz OM602/OM606 xyaw thiab cov ntawv thov kev lag luam marine. Qhov ntsuas no tshem tawm qhov tsis paub tseeb los ntawm kev muab cov kev tshuaj ntsuam xyuas sib koom ua ke npog feem ntau cov twj hluav taws xob hluav taws xob, ua kom muaj kev tswj xyuas meej ntawm cov roj txhaj tshuaj txiav tawm solenoid, lub sijhawm solenoid valve, thiab roj muab roj solenoid, ua lub hauv paus chaw raukev txhaj tshuaj dieselteeb meem thiab kev tswj kom zoo thaum lub sij hawm remanufacturing.

📊 Quick Reference Specification Table

Parameter	Specification / Ntau	Xwm Txheej / Lus Cim
Tau tshaj Pumps	BOSCH VP37, VE37, Terraca, VP30	Txhawb lwm yam BOSCH VE hluav taws xob sib txawv
Tsav Actuator Tam sim no	4 – 5 amp	Raws li qhov sib npaug - tswj cov hlau nplaum
Voltage (PWM)	0-5V DC	Zaus: 165 - 195 Hz
Tswj hom	Qhib-Loop / Kaw-Loop	Kev tuav lub luag haujlwm lub voj voog lossis pib - txoj haujlwm kaw
Static Resistance (22.5 degree)	Actuator: 5-6Ω / Sensor: 0.4-1.5kΩ	Kub Sensor: 1-2kΩ
Saib xyuas cov teeb liab	Txoj hauj lwm (Voltage), Kub (Resistance)	Tiag - lub sij hawm tawm tswv yim rau qhov tseeb ntawm kev kuaj mob
Tso zis Control	Fuel Cut-tawm solenoid, Timing Valve	Enable/disable rau functional testing
Ua haujlwm kub	-5℃rau 50 degree	Haum rau kev cob qhia ib puag ncig

💡 Tus nqi tsim nyog hauv Common Rail thiab FIP Kho Kev Ua Haujlwm

Thaum lubEDC VP37 Pump Testerspecializes nyob rau hauv cov laus cov twj tso kua mis, nws lub luag hauj lwm nyob rau hauv ib tug niaj hnub diesel rhiav extends tshaj yooj yim actuation rau hauv kev tswj kom zoo. Covcommon rail systemthiab nws cov khoom siv hluav taws xob cov twj tso kua mis ua ntej ob leeg tso siab rau kev tswj hwm hydraulic tswj los ntawm solenoids - cov ntsiab lus tsis ua haujlwm tseem ceeb feem ntau nyob hauv cov khoom siv hluav taws xob es tsis yog cov tshuab plungers. Qhov ntsuas no tso cai rau cov kws tshaj lij cais tawm qhov sib txawv los ntawm simulating ECU cov khoom tawm ntawm lub rooj ntev zaum, lees paub tias lub sijhawm sab hauv piston, ntsuas lub tes tsho, thiab txiav - tawm solenoid teb kom raug ua ntej lub twj tso kua mis. Qhov kev siv tau zoo no txo qis kev kuaj mob tsis pom tseeb ntawm lub tsheb, txiav lub sijhawm siv los khiav cov kab txuas sib txuas lossis cov lus tawm tswv yim tsis raug. Rau ibroj txhaj tshuaj khoqhov chaw, qhov no txhais tau hais tias kom rov tsim dua qhov tseeb dua, txhim kho thawj zaug -lub sijhawm- haum tus nqi, thiab ntseeg siab lav ntawm cov khoom siv rov ua dua tshiab, tiv thaiv lub rooj cob qhia lub koob npe nrov thiab txo lub luag haujlwm. Nws ua tau zoo hloov pauv tus qauv ntsuas lub rooj ntev zaum mus rau hauv qhov chaw kuaj mob ntse, ua kom cov khoom sib xyaw ua ke - qib kho nrog qhov xav tau ntawm cov kev cai niaj hnub emissions.

❓ FAQ: Kev yuav khoom zoo thiab kev pom zoo ua haujlwm

Q1: Cov neeg ntsuas no puas tuaj yeem paub qhov txawv ntawm lub twj tso kua mis tsis ua haujlwm thiab lub ECU tsis raug?

A:Yog lawm. Khiav lub twj tso kua mis ntawm lub rooj ntev zaum los ntawm kev qhib / kaw - hom voj voog txheeb xyuas cov lus teb ntawm tus kheej. Kev ua tau zoo tag nrho ntawm cov ntsuas ntsuas rau cov hlua hluav taws xob lossis ECU qhov tsis raug, txuag cov sij hawm kuaj mob.

Q2: Nws puas txhawb nqa Euro III twj?
A:Yog lawm. Nws cuam tshuam nrog Euro III EDC thiab Electronic VE Pump specs, npog VP37 thiab VP30 variants nrog rau PWM tsav thiab kev soj ntsuam xyuas.

Q3: Dab tsi yog shipping qhov ntev thiab lub zog xav tau?
A:Ntim ntawm 42X42X22 cm, 8 kg. Khiav ntawm 110V / 220V AC (50 / 60Hz), sib xws nrog cov chaw ua haujlwm thoob ntiaj teb.

Q4: Nws pab li cas nrog kev pib nyuaj lossis teeb meem pa taws dawb?
A:Nws saib xyuas lub sij hawm solenoid thiab kub sensor teeb liab. Kev lees paub lub sijhawm kom raug ua ntej thiab txiav - tawm haujlwm solenoid tshem tawm cov twj tso kua mis - sab ua rau txias - pib teeb meem.

Q5: Dab tsi yog qhov kev pab cuam lub neej?
A:Rated rau ntau tshaj 5 xyoos nrog kev lag luam - cov khoom siv qib thiab kev saib xyuas kom zoo- ua kom huv si thiab nyob rau hauv qhov kub thiab txias ua kom lub sij hawm ntev -.
