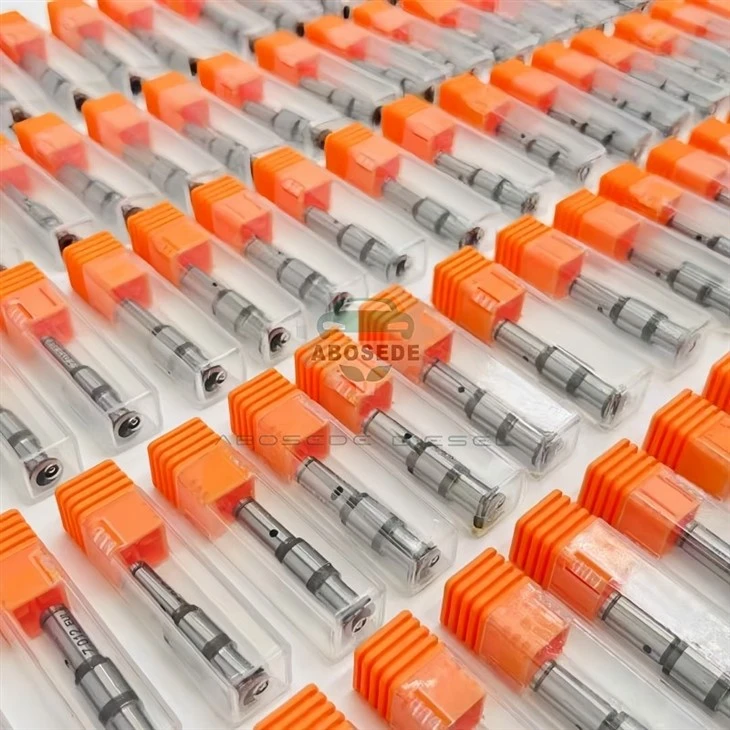

Detroit EUD 7.010 Valve Plunger - Thermo-Mechanical Stress Compensation & Dynamic Clearance Stabilization Rau Detroit S50 / S60 Series Chav Injectors



Hauv Detroit Diesel S50 thiab S60 series cav, Detroit Electronic Unit Distributor (EUD) injector ua haujlwm nyob rau hauv ib puag ncig uas muaj roj kub tuaj yeem nyob ntawm -20℃thaum txias pib mus txog 150℃nyob rau hauv kev ua haujlwm puv puv. Qhov no 170℃kub viav vias ua rau lub valve plunger thiab lub cev txhaj tshuaj kom nthuav dav ntawm tus nqi sib txawv, hloov pauvdynamic clearance- qhov sib txawv ntawm lub plunger thiab lub bore thaum txhaj tshuaj. Yog tias qhov kev tshem tawm no txawv txav nrog qhov kub thiab txias, tus nqi xau thiab lub plunger qhov chaw nruab nrab hloov pauv, cuam tshuam rau lub sijhawm txhaj tshuaj thiab ntau. Lub Detroit EUD 7.010 yog lub valve plunger tshwj xeeb tsim rau Detroit S50 thiab S60 series chav injectors, nrog rau qhov tshwj xeeb tsim qhov tseem ceeb:Thermos-mechanical stress them nyiaj los ntawm kev tswj-expansion alloy thiab precision-relieved geometry. Lub plunger no yog tsim los ntawm ibHloov cov cuab yeej hlau nrog qhov sib txawv ntawm cov thermal expansion (CTE) ntawm 11.0 × 10⁻⁶ / K-zoo sib xws rau lub cev injector lub cam khwb cia hlau CTE (10.8 × 10⁻⁶/K)- txo qis qhov sib txawv. Tsis tas li ntawd, lub plunger nta astress-relieved undercutntawm lub shank uas absorbs thermal kev loj hlob yam tsis muaj kev ntxhov siab rau kev tswj ntug, tswj kev ruaj khov dynamic clearance thoob plaws txhua qhov kub thiab txias. Thaum siv lub plunger yam tsis muaj qhov nyiaj them rau qhov ntsuas kub, qhov kev tshem tawm tuaj yeem hloov pauv mus txog 0.005 hli ntawm kev ua haujlwm txias thiab kub, ua rau muaj kev kub ntxhov.kub-nyob ntawm lub sij hawm hloovuas manifests raws li ib tug pom kev hloov nyob rau hauv lub engine kev ua tau zoo los ntawm txias pib mus rau kev khiav hauj lwm kub. Phau ntawv qhia no rov txhais lub EUD 7.010 ua ibthermal-stability tivthaiv, qhov twg CTE txuam thiab kev ntxhov siab nyem kom zoo ib yam dynamic clearance nyob rau hauv tag nrho cov thermal tej yam kev mob.



Lub EUD 7.010 valve plunger yog ib qho kev hloov pauv ncaj qha rau cov nram qab no Detroit Diesel chav injector series:

Detroit Diesel S50- 4-lub voj voog, nyob rau hauv-kab 4-lub tog raj kheej cav siv hauv tsheb npav, tsheb thauj khoom, thiab kev lag luam

Detroit Diesel S60- 4-cycle, nyob rau hauv-kab 6-lub tog raj kheej cav, ib qho ntawm feem ntau siv hnyav-duty diesel cav nyob rau hauv North America (1987-2010)

Cov chav injectors no tau nruab rau hauv:

Freightliner, Peterbilt, Kenworth, Western Star- Chav kawm 8 tsheb nrog S60 cav

MCI, Prevost- Motorcoach thiab tsheb npav thauj mus los

Industrial thiab marine- Generator teeb, twj, thiab marine propulsion systems

Lub EUD 7.010 yog txheeb xyuas los ntawm nwsstress-relieved undercut-a precision-av groove ntawm lub shank-thiab alaser-engraved "7.010"cim. Qhov chaw muaj atswj-roughness tiav(Ra 0.08 µm) uas tswj cov lubrication zoo ib yam thoob plaws qhov kub thiab txias. Tus naj npawb ntawm Detroit feem ntau yog stamped li 7.010-xxx lossis 2 418 455 4xx (cov lus qhia tshwj xeeb rau Detroit daim ntawv thov). Tsis zoo li EUD plungers ua ntej, 7.010 qhov tseem ceeb ntawm cov nyiaj them rau cov tshuab hluav taws xob thiab kev tswj xyuas thermal-stability.



Parameter	Specification
Detroit Kev siv	EUD 7.010 (2 418 455 4xx series - paub meej tias nrog cov tshuaj txhaj)
Hom Lub Npe	Valve plunger nrog CTE-matched alloy thiab kev ntxhov siab
Khoom siv hauv paus	Hloov cov cuab yeej steel (ASP 2053 variant) - tailored CTE
Coefficient ntawm Thermal Expansion	11.0 × 10⁻⁶ / K (muab rau cam khwb cia hlau lub cev: 10.8 × 10⁻⁶ / K)
Kev kho saum npoo	Gas nitriding - qhov tob ntawm 0.15-0.20 mm
Stress-Relief Undercut Qhov tob	0.3 hli - absorbs thermal kev loj hlob
Clearance Variation (–20℃→ +150 degree)	Tsawg dua lossis sib npaug li 0.0015 mm (vs . 0.005 mm rau tus qauv)
Leakage Rate Variation	Tsawg dua lossis sib npaug li 8% thoob qhov ntsuas kub (vs . 25% tus qauv)
Tswj Ntug Av Dav	0.70mm ib
Sealing Av Diameter	5.980-5.985 hli
Mating Fit Clearance (ntawm 20 degree)	0.004-0.007 hli
Peak Pressure Capability	Ntau dua lossis sib npaug rau 1,800 bar
Pom zoo hloov	500,000–700,000 mais (ntawm txoj kev loj) / 8,000–10,000 teev (kev lag luam)
Txoj kev tshuaj xyuas	Clearance ntsuas ntawm qhov kub thiab txias; undercut check



Ib qho EUD 7.010 uas tau hloov nrog lub plunger tsis them nyiaj rov qab qhia nws tus kheej los ntawm qhov ntsuas kub ntawm qhov ua tau zoo:

Lub sijhawm txias-rau-kub drift- Lub sijhawm txhaj tshuaj hloov pauv tau pom zoo thaum lub cav ua kom sov, yuav tsum tau hloov kho dua tshiab.

Kev yos hav zoov ntawm kev ua haujlwm kub- Lub idle yuav tsis ruaj khov thaum kub, qhia txog qhov sib txawv txav.

Ua kom cov pa taws txias pib- Kev tshem tawm ntau dhau thaum txias tso cai rau cov pa tawm, ncua kev pib txhaj tshuaj.

Kub-sensitive roj kev lag luam- Kev siv roj sib txawv heev ntawm kev ua haujlwm txias thiab kub.

Kev ntsuam xyuas kev cob qhia: ntsuas lub plunger-rau-bore clearance ntawm ob qhov kub (20℃thiab 100 degree). Ib qho nyiaj npib plunger qhia tau tias muaj kev hloov pauv tsawg; lub plunger tsis them nyiaj qhia pom qhov kev tshem tawm ntawm 0.003-0.005 hli.



Lub tshuab Detroit S50 / S60 paub txog lawv cov kav ntev, tab sis EUD injector rhiab heev rau thermal expansion tuaj yeem ua rau muaj kev hloov pauv yog tias lub plunger tsis sib haum rau lub kaw lus. Lub EUD 7.010's thermo-mechanical them nyiaj ua haujlwm kom ntseeg tau tias cov twj tso kua mis hydraulic nyob ruaj khov los ntawm qhov pib txias mus rau tag nrho cov khoom thauj, tswj cov khoom siv hluav taws xob zoo ib yam uas Detroit cov cav muaj npe nrov.



Q1: Dab tsi yog thermo-mechanical stress them?
Nws yog lub tswv yim tsim los txo qis qhov kev hloov pauv uas tshwm sim los ntawm qhov sib txawv ntawm qhov kub thiab txias ntawm lub plunger thiab lub cev txhaj tshuaj, ua kom muaj kev ruaj ntseg ruaj khov thoob plaws txhua qhov kev ua haujlwm kub.

Q2: Yuav ua li cas EUD 7.010 ua tiav qhov no?
Los ntawm CTE-matched alloy (zoo sib xws rau cam khwb cia hlau injector lub cev) thiab kev ntxhov siab-relief undercut uas absorbs thermal loj hlob yam tsis muaj kev cuam tshuam rau kev tswj ntug.

Q3: Kuv puas tuaj yeem siv EUD 7.010 hauv lub tshuab txhaj tshuaj uas yog siv 7.005?
Yog lawm-lub 7.010 yog qhov sib npaug nrog txhua Detroit S50/S60 injectors. Nws ntxiv cov thermo-mechanical them nyiaj tshwj xeeb, uas txhim kho thermal stability thiab pom zoo rau cov cav ua haujlwm hauv qhov kub thiab txias.

Q4: Dab tsi yog cov tsos mob ntawm thermal them nyiaj tsis zoo?
Lub sij hawm txias-rau-kub drift, yos hav zoov ntawm kev khiav hauj lwm kub, thiab nce cov pa taws txias pib.

Q5: Kuv tuaj yeem txheeb xyuas qhov kev ntxhov siab-relief undercut puas lawm?
Tshawb xyuas qhov zawj hauv qab kev nthuav dav - nws yuav tsum huv thiab tsis muaj burrs. Qhov tob yuav tsum yog kwv yees li 0.3 hli.

Q6: Lub sijhawm hloov pauv tau pom zoo yog dab tsi?
Detroit pom zoo 500,000–700,000 mais (ntawm txoj kev loj) / 8,000–10,000 teev (kev lag luam).
