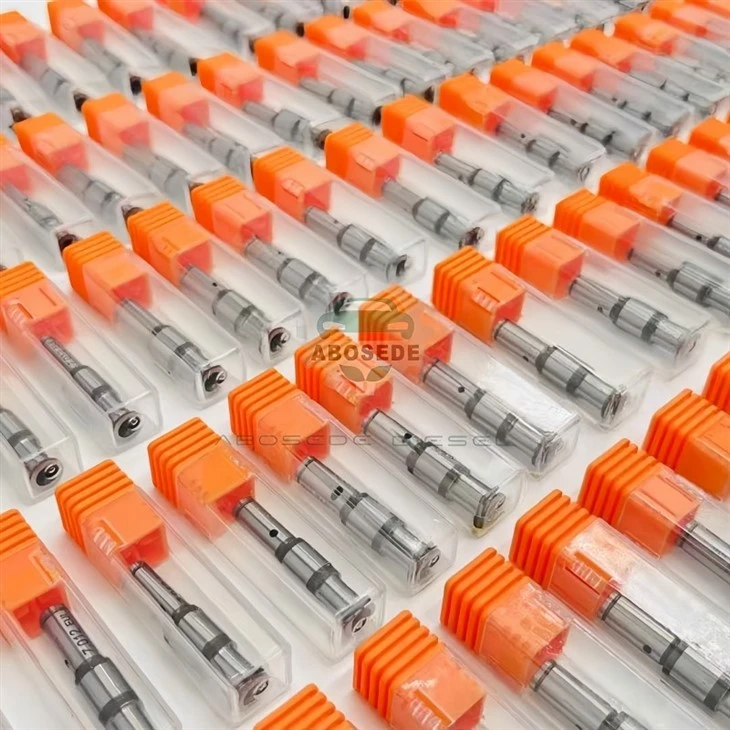

Detroit EUD 7.015 Valve Plunger - Hydrodynamic Lubrication Zaj duab xis Stabilization & Friction-Induced Hnav Reduction Rau Detroit S50 / S60 Series Unit Injectors



Hauv Detroit Diesel S50 thiab S60 series cav, Detroit Electronic Unit Distributor (EUD) injector ua haujlwm ntawm qhov siab tshaj 1,800 bar, nrog lub valve plunger reciprocating ntawm zaus mus txog 60 Hz. Nyob rau hauv cov xwm txheej hnyav no, tsuas yog qhov thaiv ntawm lub plunger thiab lub bore yog lub tshuab microscopichydrodynamic lubrication zaj duab xis- txheej nyias nyias ntawm cov roj uas sib cais ntawm ob qhov chaw thaum lub zog. Yog tias cov yeeb yaj kiab no tsis ruaj khov lossis tawg, lub plunger kev paubciam teb los yog sib tov kev sib txhuam, ua rau kom nrawm hnav thiab nce zuj zus ntxiv hauv cov dej ntws. Lub Detroit EUD 7.015 yog lub valve plunger tshwj xeeb tsim rau Detroit S50 thiab S60 series chav injectors, nrog rau qhov tshwj xeeb tsim qhov tseem ceeb:hydrodynamic lubrication zaj duab xis stabilization los ntawm precision-textured nto profile. Qhov no plunger nta amicro-grooved nto kev ntxhib los mos-cov qauv ntawm cov kab hluav taws xob ultra-fine (2 µm tob, 5 µm dav) tau teeb tsa hauv cov qauv ntoo khaub lig thoob plaws thaj av sib khi. Cov micro-grooves no ua raws li cov roj av reservoir, tswj cov roj ua kom ruaj khov txawm tias thaum lub sijhawm ua haujlwm siab ntawm kev txhaj tshuaj, thiab tiv thaiv cov yeeb yaj kiab sib tsoo uas ua rau muaj kev sib cuag hlau-rau-hlau. Thaum siv lub plunger yam tsis muaj qhov textured nto, lub lubrication zaj duab xis tawg nyob rau hauv siab, ua raunplaum hnavuas manifests raws li cov qhab nias ntawm lub plunger nto thiab ib tug zuj zus nce nyob rau hauv injector leak-off. Phau ntawv qhia no rov txhais lub Detroit EUD 7.015 ua atribological-kev ua tau zoo, qhov twg nto kev ntxhib los mos tswj lubrication stability thiab hnav tsis kam.



Lub Detroit EUD 7.015 valve plunger yog ib qho kev hloov pauv ncaj qha rau cov nram qab no Detroit Diesel chav injector series:

Detroit Diesel S50- 4-lub voj voog, nyob rau hauv-kab 4-lub tog raj kheej cav siv hauv tsheb npav, tsheb thauj khoom, thiab kev lag luam

Detroit Diesel S60- 4-cycle, nyob rau hauv-kab 6-lub tog raj kheej cav, ib qho ntawm feem ntau siv hnyav-duty diesel cav nyob rau hauv North America (1987-2010)

Cov chav injectors no tau nruab rau hauv:

Freightliner, Peterbilt, Kenworth, Western Star- Chav kawm 8 tsheb nrog S60 cav

MCI, Prevost- Motorcoach thiab tsheb npav thauj mus los

Industrial thiab marine- Generator teeb, twj, thiab marine propulsion systems

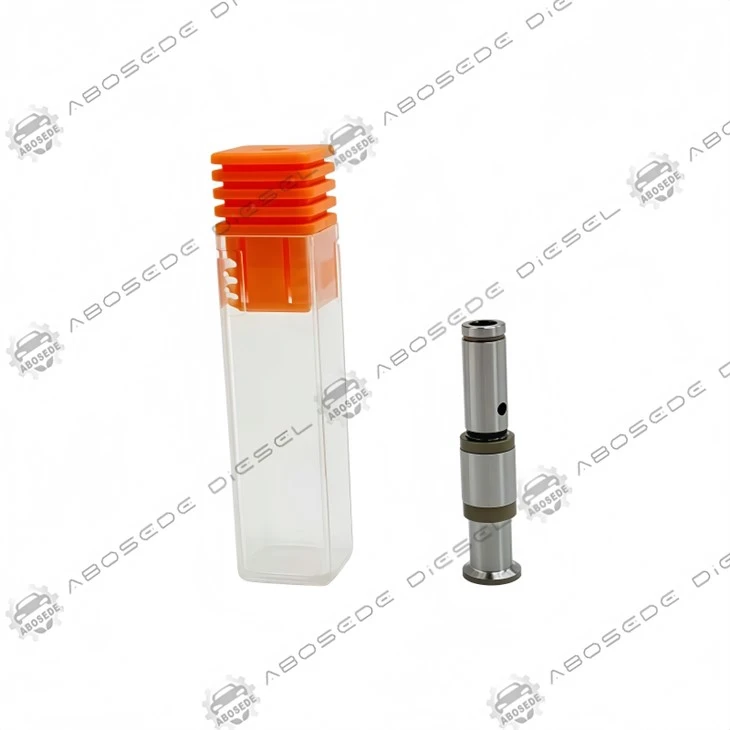

Lub Detroit EUD 7.015 yog txheeb xyuas los ntawm nwsmicro-grooved nto kev ntxhib los mos- tus qauv ntoo khaub lig zoo pom hauv qab 50 × magnification- thiab ibLaser-engraved "EUD 7.015"cim. Tus naj npawb ntawm Detroit feem ntau yog stamped li 2 418 455 5xx (cov lus qhia tshwj xeeb rau Detroit daim ntawv thov). Tsis zoo li EUD 7.010 (uas tsom rau kev them nyiaj rau cov tshuab hluav taws xob), 7.015 ua ntej lubrication zaj duab xis stabilization thiab kev sib txhuam txo.



Parameter	Specification
DetroitKev siv	EUD 7.015 (2 418 455 5xx series - paub meej nrog cov tshuaj txhaj)
Hom Lub Npe	Valve plunger nrog micro-grooved nto zoo nkauj
Khoom siv hauv paus	Kev kub ceev cov cuab yeej hlau (ASP 2053) - core hardness HRC 58-62
Kev kho saum npoo	Gas nitriding + micro-grooving - rooj plaub qhov tob 0.15-0.20 mm
Groove Dimensions	2 µm tob × 5 µm dav - cross-hatch qauv (45 degree)
Lubrication Film Stability	Tuav txog li 2,000 bar shear stress
Kev sib txhuam coefficient (stabilized)	0.05–0.07 (vs . 0.10–0.14 rau du nto)
Hnav tus nqi txo	45% vs. standard smooth-land plungers
Scoring Resistance	Tshem tawm cov nplaum hnav nyob rau hauv ib txwm ua haujlwm
Tswj Ntug Av Dav	0.70mm ib
Sealing Av Diameter	5.980-5.985 hli
Mating Fit Clearance	0.004-0.007 hli
Peak Pressure Capability	Ntau dua lossis sib npaug rau 1,800 bar
Pom zoo hloov	500,000–700,000 mais (ntawm txoj kev loj) / 8,000–10,000 teev (kev lag luam)
Txoj kev tshuaj xyuas	Surface kev ntxhib los mos; kev ntsuam xyuas dej



Lub Detroit EUD 7.015 uas tau hloov pauv nrog lub ntsej muag du plunger qhia nws tus kheej los ntawm cov tsos mob ntsig txog kev sib txhuam vim hnav:

Progressive leak-off nce- Roj rov qab los ntawm lub injector nce tsis tu ncua, qhia txog kev sib tw los yog plunger.

Injector "sticction" thaum pib txias- Lub plunger sticks ib ntus thaum txias, ua rau ncua sijhawm txhaj tshuaj.

Cov qhab nia ntawm plunger nto- pom hnav kab ntawm cov av sealing qhia tias hnav cov nplaum.

Nce roj rov qab kub- elevated kev sib txhuam generates tshaj tshav kub, tsa cov rov qab roj kub.

Kev kuaj kev cob qhia: tshem lub plunger thiab tshuaj xyuas thaj av sib khi hauv qab 50 × magnification. Ib tug textured nto qhia txog tus ntoo khaub lig-hatch qauv; ib tug hnav nto zoo nkaus li polished nrog pom cov qhab nias kab.



Lub Detroit S50 / S60 EUD injector ua haujlwm nrog ahigh-pressure, siab shearib puag ncig uas nyuaj rau cov zaj duab xis lubrication. Lub micro-grooved nto ntawm EUD 7.015 kom ntseeg tau tias cov yeeb yaj kiab tseem nyob ruaj khov txawm tias nyob rau hauv cov kev xav tau tshaj plaws, tiv thaiv cov nplaum nplaum uas ua rau lub tshuab tsis ua haujlwm ntxov.



Q1: Dab tsi ua rau cov zaj duab xis lubrication vau?
Kev kub siab, siab shear, thiab nto roughness tuaj yeem ua rau cov zaj duab xis nyias, ua rau kev sib cuag hlau-rau-hlau.

Q2: Cov micro-grooves pab tau li cas?
Cov grooves ua raws li lubricant reservoirs, tuav ib tug ruaj khov zaj duab xis txawm nyob rau hauv high-shear tej yam kev mob.

Q3: Kuv puas tuaj yeem siv EUD 7.015 hauv cov tshuaj txhaj tshuaj uas yog siv 7.010?
Yog lawm-lub 7.015 yog qhov sib npaug nrog txhua Detroit S50/S60 injectors. Nws ntxiv lub lubrication zaj duab xis stabilization feature.

Q4: Cov tsos mob ntawm cov yeeb yaj kiab yog dab tsi?
Progressive leak-off nce, injector sticction, qhab nia qhab nia, thiab elevated roj rov qab kub.

Q5: Kuv tuaj yeem txheeb xyuas qhov kev ntxhib los mos li cas?
Tshawb xyuas qhov chaw nyob hauv qab 50 × magnification- tus qauv cross-hatch yuav tsum txawv.

Q6: Lub sijhawm hloov pauv tau pom zoo yog dab tsi?
Detroit pom zoo 500,000–700,000 mais (ntawm txoj kev loj) / 8,000–10,000 teev (kev lag luam).
