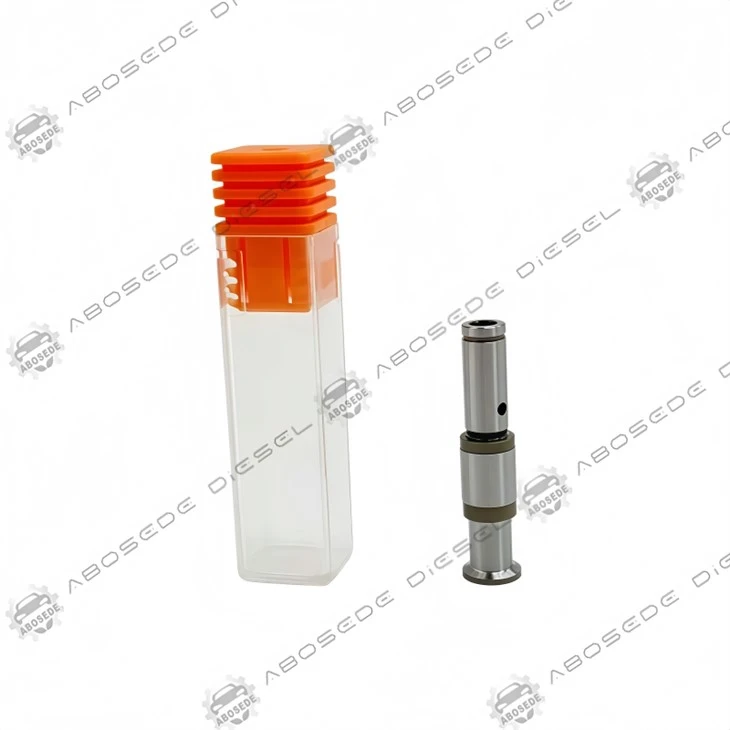

Detroit EUD 7.030 Valve Plunger - Hnav Hom Kev Ntsuas & Tswj Kev Ua Kom Tsis Zoo Rau S50 / S60 Series Chav Injectors



Nyob rau hauv Detroit Diesel S50 thiab S60 series xyaw, Electronic Unit Distributor (EUD) injector's valve plunger undergoes gradual hnav thoob plaws nws lub neej kev pab cuam. Txawm li cas los xij, tsis yog txhua tus qauv coj los sib npaug. Qee cov plungers hnavkwv yees thiab nce qib, thaum lwm tus degradeyuam kev, ua rau poob kev ua haujlwm tam sim ntawd thiab lub sijhawm poob qis. Lub Detroit EUD 7.030 yog lub valve plunger tshwj xeeb tsim rau Detroit S50 thiab S60 series chav injectors, nrog rau qhov tshwj xeeb tsim qhov tseem ceeb:hnav hom kev kwv yees los ntawm kev tswj xyuas qhov profile tsis zoo. Qhov no plunger nta amulti-theem tswj ntug-qhov tseeb-hauv av geometry uas ua kom lub plunger hnav ntawm qhov sib npaug, kwv yees tus nqi thoob plaws nws lub neej kev pabcuam tag nrho, es tsis ua rau poob sai sai ze rau qhov kawg ntawm nws lub neej siv tau. Lub ntug yog tsim los nrog ib tug txiab txheej txheej uas hnav ua ntej, tiv thaiv thawj sealing geometry thiab tsim ib tugkwv yees hnav kos npeuas tuaj yeem raug taug qab. Thaum siv lub plunger yam tsis muaj kev tswj xyuas qhov tsis zoo no, qhov kev coj ua tsis zoo, ua rau nws tsis tuaj yeem kwv yees lub neej kev pabcuam ntxiv thiab ua rau muaj kev hloov ntxov ntxov (tsis tsim nyog) lossis hloov lig (injector tsis ua haujlwm). Phau ntawv qhia no rov txhais cov EUD 7.030 ua ibkev saib xyuas-predictability tivthaiv, qhov twg tswj kev hnav ua kom raug kev pabcuam lub sijhawm npaj.



Lub Detroit EUD 7.030 valve plunger yog ib qho kev hloov pauv ncaj qha rau cov nram qab no Detroit Diesel chav injector series:

Detroit Diesel S50- 4-lub voj voog, nyob rau hauv-kab 4-lub tog raj kheej cav siv hauv tsheb npav, tsheb thauj khoom, thiab kev lag luam

Detroit Diesel S60- 4-cycle, nyob rau hauv-kab 6-lub tog raj kheej cav, ib qho ntawm feem ntau siv hnyav-duty diesel cav nyob rau hauv North America (1987-2010)

Cov chav injectors no tau nruab rau hauv:

Freightliner, Peterbilt, Kenworth, Western Star- Chav kawm 8 tsheb nrog S60 cav

MCI, Prevost- Motorcoach thiab tsheb npav thauj mus los

Industrial thiab marine- Generator teeb, twj, thiab marine propulsion systems

Lub EUD 7.030 yog txheeb xyuas los ntawm nwsmulti-theem tswj ntug-ib kauj ruam sib txawv pom nyob rau hauv kev nthuav dav-thiab aLaser-engraved "EUD 7.030"cim. Tus naj npawb ntawm Detroit feem ntau yog stamped li 2 418 455 8xx (cov lus qhia tshwj xeeb rau Detroit daim ntawv thov). Tsis zoo li EUD 7.025 (uas tsom mus rau xoom-txoj haujlwm ruaj ntseg), 7.030 qhov tseem ceeb hnav qhov kev kwv yees thiab kev tswj xyuas tsis zoo.



Parameter	Specification
DetroitKev siv	EUD 7.030 (2 418 455 8xx - paub meej nrog cov tshuaj txhaj)
Hom Lub Npe	Valve plunger nrog ntau theem tswj ntug
Khoom siv hauv paus	Kev kub ceev cov cuab yeej hlau (ASP 2053) - core hardness HRC 58-62
Kev kho saum npoo	Gas nitriding nrog sacrificial txheej txheej
Tswj Edge Profile	Ob-theem: sacrificial txheej (0.02 hli) + thawj sealing geometry
Hnav hom	Tawm thiab kwv yees (R² Ntau dua lossis sib npaug rau 0.95 thoob plaws lub neej kev pabcuam)
Qhov tseeb ntawm Kev Ua Neej Nyob	± 50,000 mais (vs. ± 150,000 mais rau tus qauv)
Sudden Failure Risk	Tshem tawm (vs . 15% sudden tsis ua hauj lwm tus qauv)
Tswj Ntug Av Dav	0.70mm ib
Sealing Av Diameter	5.980-5.985 hli
Mating Fit Clearance	0.004-0.007 hli
Peak Pressure Capability	Ntau dua lossis sib npaug rau 1,800 bar
Pom zoo hloov	500,000–700,000 mais (ntawm txoj kev loj) / 8,000–10,000 teev (kev lag luam)
Txoj kev tshuaj xyuas	Ntug profile check; hnav kos npe tsom xam



EUD 7.030's tswj hnav hom tso cai rau kev kwv yees lub neej muaj tseeb:

Theem 1 (0–300,000 mais)-Txoj kev txi txiv hnav, thawj geometry tseem nyob tsis muaj. Kev ua tau zoo ruaj khov.

Theem 2 (300,000–500,000 mais)-Txoj kev txi tag nrho hnav, thawj geometry pib koom nrog. Me me lub sijhawm hloov pauv tau pom tau.

Theem 3 (500,000–700,000 mais)- Thawj geometry hnav ntawm tus nqi tswj. Hloov cov lus pom zoo hauv 50,000 mais tom ntej.

Kev ntsuam xyuas kev cob qhia: ntsuas lub plunger tswj ntug profile siv tus sib piv. Qhov seem sacrificial txheej tob ncaj qha correlates nrog rau seem kev pab cuam lub neej.



Qhov ob-theem profile yog qhov ua tau zoo:

Ntug tshuaj xyuas- Tshawb xyuas qhov ntau theem ntug hauv qab 50 × magnification kom paub meej tias ob theem tam sim no.

Kev ntsuas qhov profile- Qhov tob ntawm kev txi yuav tsum yog 0.02 hli.

Insertion-Dub hauv cov roj av huv si thiab ntxig nrog kev sib hloov qeeb, ruaj khov.

Solenoid adaptation- Pib dua ECU hloov kho tom qab kev teeb tsa.

Detroit tsis muab khoom kho; multi-theem ntug yog ib qho tseem ceeb.



Q1: Dab tsi yog qhov kev tswj xyuas qhov tsis zoo?
Ib hom kev hnav uas nce mus tas li, kwv yees tus nqi, tso cai rau kev pabcuam kev ua haujlwm zoo.

Q2: Ob theem ntug ua haujlwm li cas?
Ib txheej kev txi yog hnav ua ntej, tiv thaiv thawj sealing geometry. Tus hnav tus nqi tseem nyob tas li thoob plaws.

Q3: Kuv puas tuaj yeem siv EUD 7.030 hauv cov tshuaj txhaj tshuaj uas yog siv 7.025?
Yog - dimensionally sib xws; lub 7.030 ntxiv coj kev kwv yees.

Q4: Kuv tuaj yeem qhia tau li cas yog tias cov txheej txheem fij tseg?
Tshawb xyuas ntug hauv qab 50 × magnification - ob theem yuav tsum pom. Hnav txheej zoo li du.

Q5: Lub sijhawm hloov pauv tau pom zoo yog dab tsi?
500,000–700,000 mais (ntawm txoj kev loj) lossis 8,000–10,000 teev (kev lag luam).

Q6: Qhov no cuam tshuam li cas rau kev npaj kho?
Tso cai rau lub sijhawm teem sijhawm ntawm injector overhauls, tshem tawm lub sijhawm poob qis.
